As Hydraulic Wire Rope Press Machine Manufacturers and Wire Rope Hydraulic Press Machine Company, Jiangsu Xingtai Hydraulic Manufacturing Co., Ltd. was founded in 1992 and is located in Taizhou City, Jiangsu Province, China. The company specializes in manufacturing hydraulic wire rope pressing machines, wire rope annealing and tapering machines, aluminum sleeves, and lifting clamps. Xingtai Hydraulic is equipped with advanced production facilities, strong technical capabilities, authoritative testing equipment, and a comprehensive quality management system.
The swaging components of Xingtai Hydraulic machines are forged from high-strength alloy steel. The machine body is manufactured from a single block of material, ensuring structural integrity and long service life. Our hydraulic systems utilize a dual-pressure pump oil supply system, which enables fast upward and downward movement while ensuring a smooth pressing process. This design significantly improves pressing quality and production efficiency.
Xingtai Hydraulic machines have been exported to numerous countries, including the UK, Australia, the Netherlands, Latvia, Malaysia, Thailand, India, Russia, Botswana, Poland, and others.
Guided by the philosophy of "high quality, competitive price, and lasting commitment," we strive to meet our customers' needs and provide them with the best service. We remain dedicated to serving both existing and new clients with the same level of excellence as we work together to build a successful future.
Technical Data
| Mode No. | GT-100 |
| Max wire rope diameter (mm) | Φ12 |
| Power (KW) | 1.5 |
| Max working pressure (Mpa) | 56Mpa |
| Max piston movement (mm) | 40 |
| The up speed of piston (mm/sec) | 8 |
| The down speed of piston (mm/sec) | 10 |
| Total length (mm) | 1000 |
| Total width (mm) | 500 |
| Total height (mm) | 1050 |
| Automatic Control | √ |
| Foot switch | √ |
Product Features

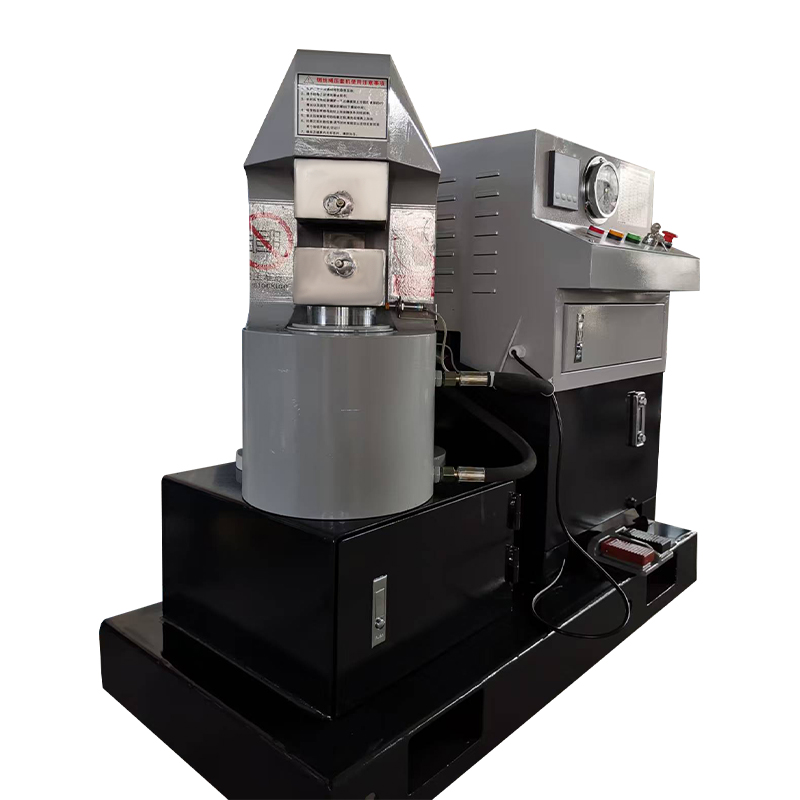

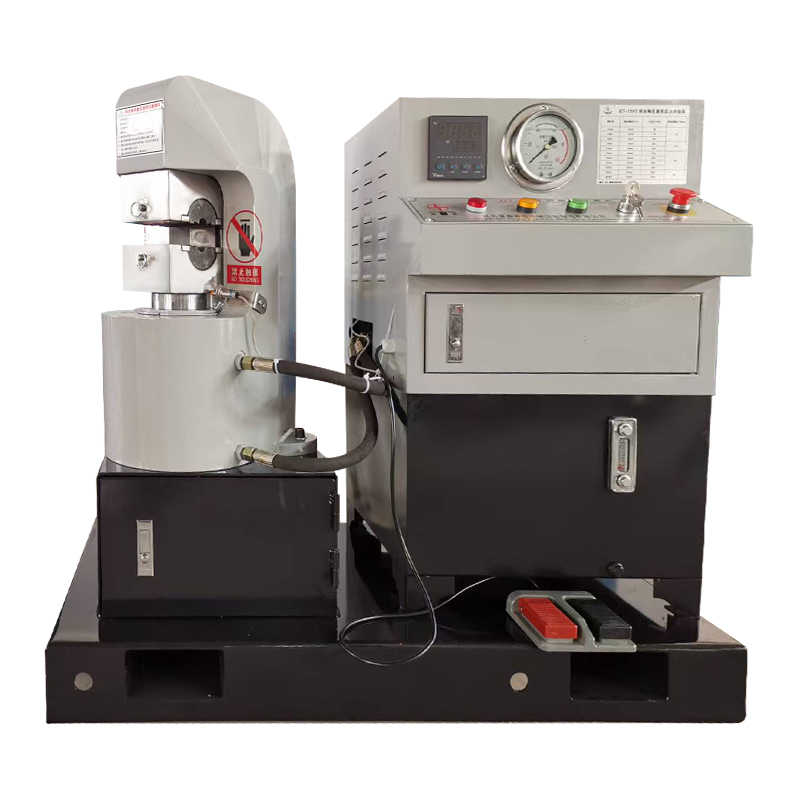

As the smallest model in our C-frame wire rope press series, the GT-100 Hydraulic Wire Rope Press Machine (C Frame) is tailored for processing small-size wire ropes, with a precise applicable range of 1mm to 10mm. It is a core equipment in factories specializing in light-duty lifting sling production, ideal for manufacturing slings used with C-clip hangers, shot fire solutions, and other light-product lifting tools.
This machine stands out with practical, production-oriented features. Its overall basket design ensures a compact size for space-saving installation, while delivering high structural strength and excellent concentricity—key to producing slings with smooth, burr-free surfaces that meet quality standards. The round mold design, paired with automatic positioning, simplifies mold replacement, reducing downtime when switching between different processing needs. For operational efficiency, it boasts two user-friendly functions: the piston automatically descends after pressing is complete, and piston movement can be precisely time-controlled, ensuring consistent processing results.
In terms of delivery, the machine is packaged with shrink wrap and an iron box for safe transport. Standard accessories include seals and high-pressure tubes, and the lead time ranges from 10 to 30 days, supporting timely factory production schedules.
