As GT-1350 Hydraulic Wire Rope Crimping Machine(Basket Frame) Manufacturers and GT-1350 Hydraulic Wire Rope Crimping Machine(Basket Frame) Company, Jiangsu Xingtai Hydraulic Manufacturing Co., Ltd. was founded in 1992 and is located in Taizhou City, Jiangsu Province, China. The company specializes in manufacturing hydraulic wire rope pressing machines, wire rope annealing and tapering machines, aluminum sleeves, and lifting clamps. Xingtai Hydraulic is equipped with advanced production facilities, strong technical capabilities, authoritative testing equipment, and a comprehensive quality management system.
The swaging components of Xingtai Hydraulic machines are forged from high-strength alloy steel. The machine body is manufactured from a single block of material, ensuring structural integrity and long service life. Our hydraulic systems utilize a dual-pressure pump oil supply system, which enables fast upward and downward movement while ensuring a smooth pressing process. This design significantly improves pressing quality and production efficiency.
Xingtai Hydraulic machines have been exported to numerous countries, including the UK, Australia, the Netherlands, Latvia, Malaysia, Thailand, India, Russia, Botswana, Poland, and others.
Guided by the philosophy of "high quality, competitive price, and lasting commitment," we strive to meet our customers' needs and provide them with the best service. We remain dedicated to serving both existing and new clients with the same level of excellence as we work together to build a successful future.
Technical Data
| Mode No. | GT-1350 |
| Max wire rope diameter in multi-pressing (mm) | Φ66 |
| Power (KW) | 11 |
| Max working pressure (MPa) | 56Mpa |
| Max piston movement (mm) | 200 |
| The up speed of the piston (mm/sec) | 4.8 |
| The down speed of the piston (mm/sec) | 10 |
| Total length (mm) | 2100 |
| Total width (mm) | 1100 |
| Total height (mm) | 2000 |
Product Features

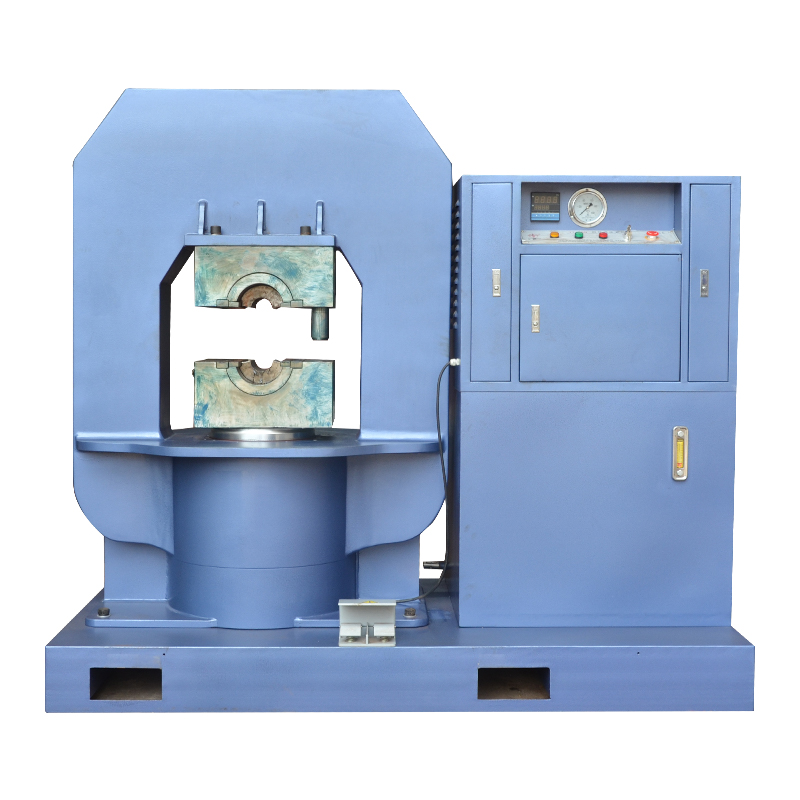

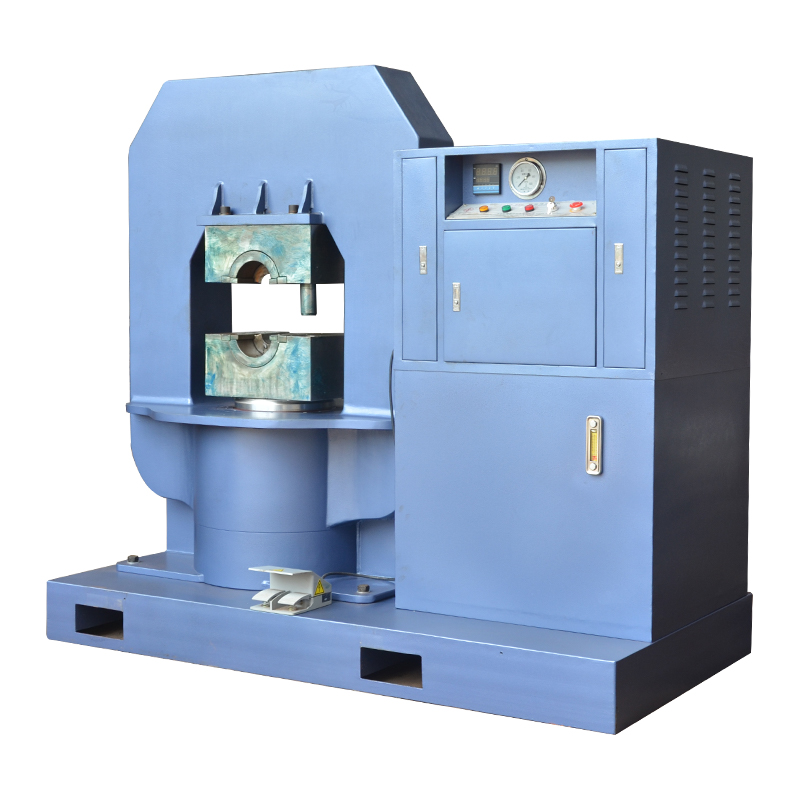

The GT-1350 Hydraulic Wire Rope Crimping Machine (Basket Frame) stands out as a robust and reliable equipment tailored for heavy-duty wire rope crimping tasks. Equipped with a high-powered two-stage hydraulic unit, it delivers exceptional pressure output to ensure firm and precise crimping, meeting the rigorous demands of industrial applications. Adhering to proven safety standards, the machine integrates multiple safety protections, including overload safeguards and stable operation controls, providing operators with a secure working environment.
Crafted with a one-piece block construction, this crimping machine boasts superior structural strength, effectively resisting wear and tear during long-term use. This design not only extends its service life but also minimizes maintenance requirements, reducing operational downtime and costs for users. The basket frame structure enhances stability during crimping, especially for large-diameter wire ropes, ensuring consistent crimping quality.
In terms of functionality, it offers remarkable versatility and convenience. The round mold design with automatic positioning allows for quick and easy mold replacement, adapting to various wire rope specifications. The piston can be stopped at any position, enabling precise adjustment of wire rope eyes or loops to match specific project needs. Notably, it is compatible with the small-sized dies of the GT-500T wire rope press machine, expanding its application scope. The crimped slings feature smooth surfaces and excellent sealing performance, ensuring safety, reliability, and durability in harsh working conditions.
Certified with CE, the GT-1350T is widely applicable in the wire rope industry, mines, metallurgy, wharves, railways, electrical engineering, and other fields, becoming an indispensable tool for industrial crimping operations.
TEST
PRODUCTION WORK SHOP
