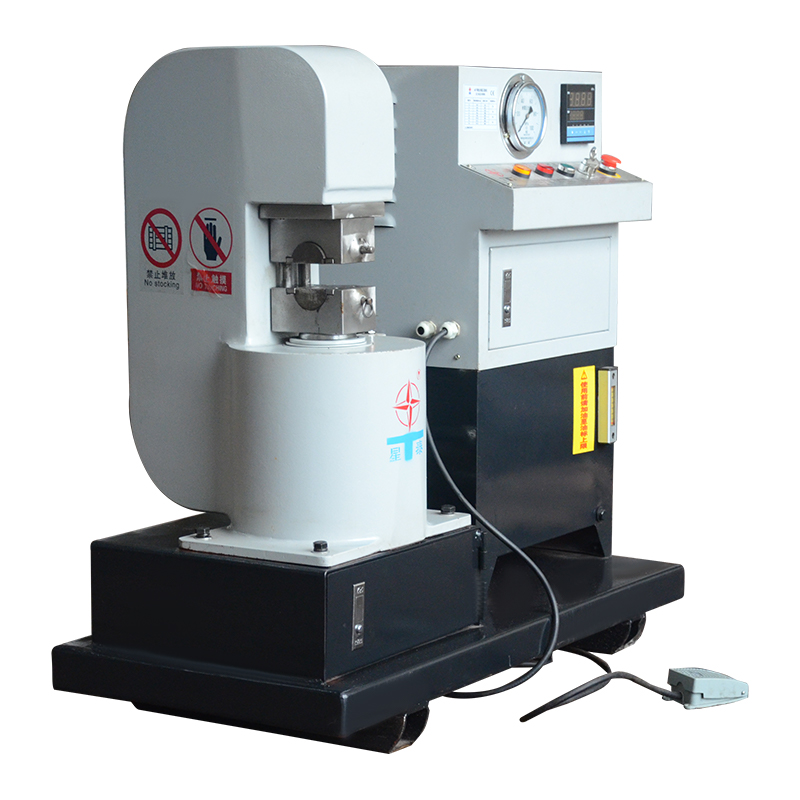

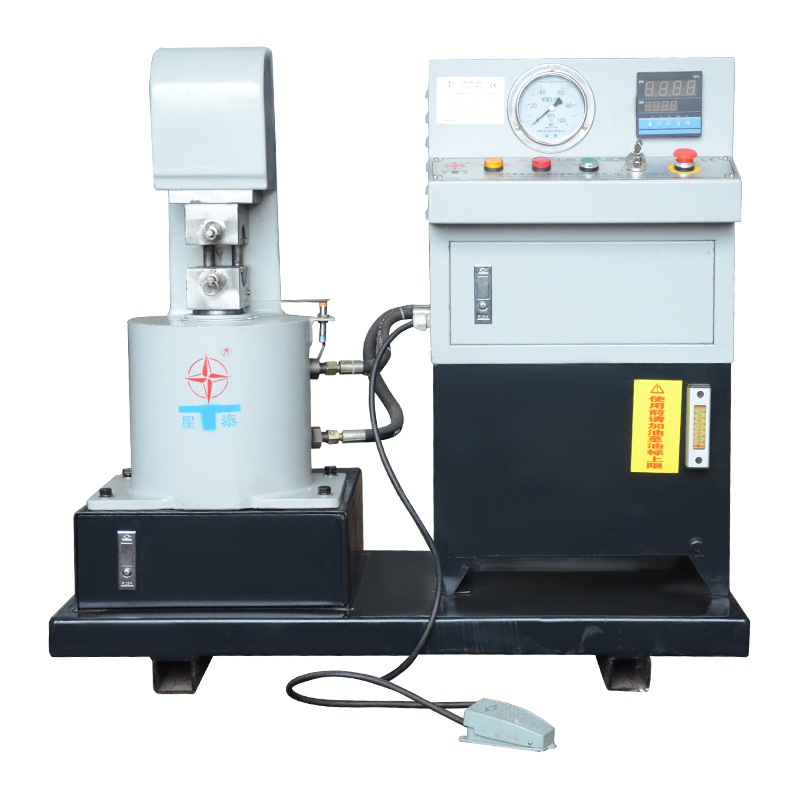

GT-60 Hydraulic Wire Rope Swage Press Machine (C Frame)

C-frame wire rope press machine is our smallest machine in C style machines.
GT-60T hydraulic press machine is to press small-sized wire rope from 1mm to 10mm.
GT-60T is usually use in factory produce slings to lift light products, such as C-clip hangers, shot fire solutions, and so on.



Characteristics
1. Overall basket design, small size, high strength, good concentricity, pressed slings with smooth surface
2. Round mold design and automatic positioning is easy to change different molds.
3. The piston is automatic down after finish pressing work.
4. The piston can be controlled by time.



Delivery
Package: shrink wrap and iron box
Accessory: seals, high-pressure tube
Time: 10-30 days

+ Contact us
PREV：GT-100 Hydraulic Wire Rope Press Machine (C Frame)NEXT：No next product
  • Parameter
  • Other Descriptions
  • Contact
Technical Data
Mode No. GT-60
Max wire rope diameter (mm) Φ12
Power (KW) 1.5
Max working pressure (Mpa) 56Mpa
Max piston movement (mm) 40
The up speed of piston (mm/sec) 8
The down speed of piston (mm/sec) 10
Total length (mm) 1000
Total width (mm) 500
Total height (mm) 1050
Net weight (kg) 400
Automatic Control √
Foot switch √
