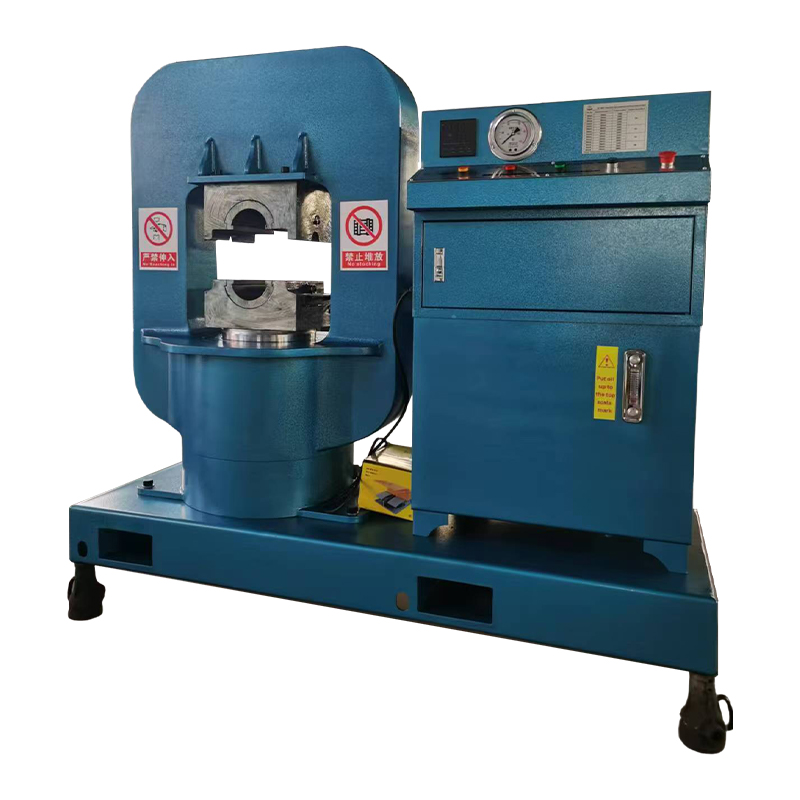

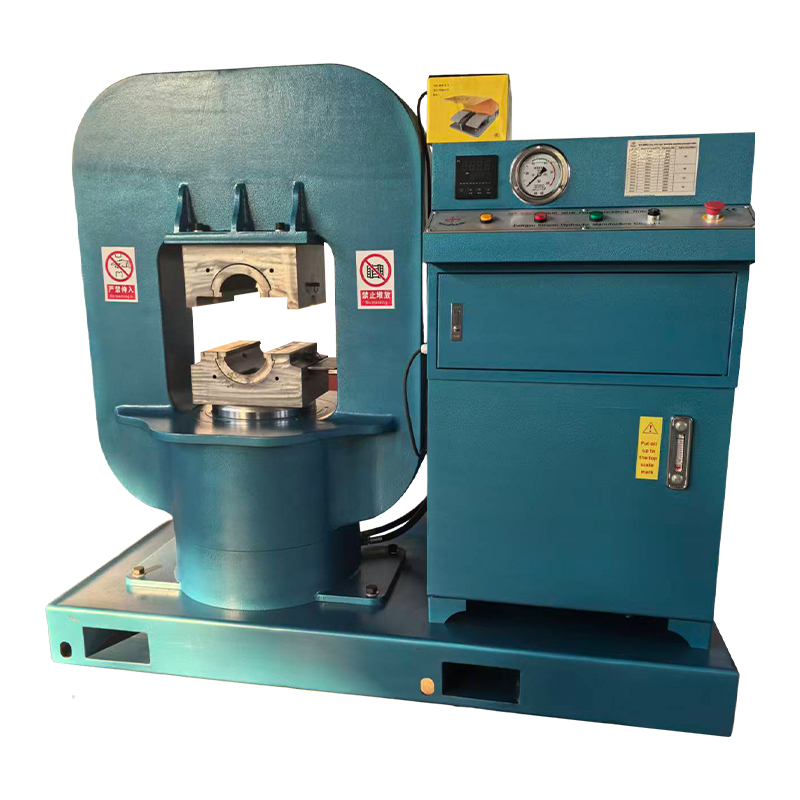

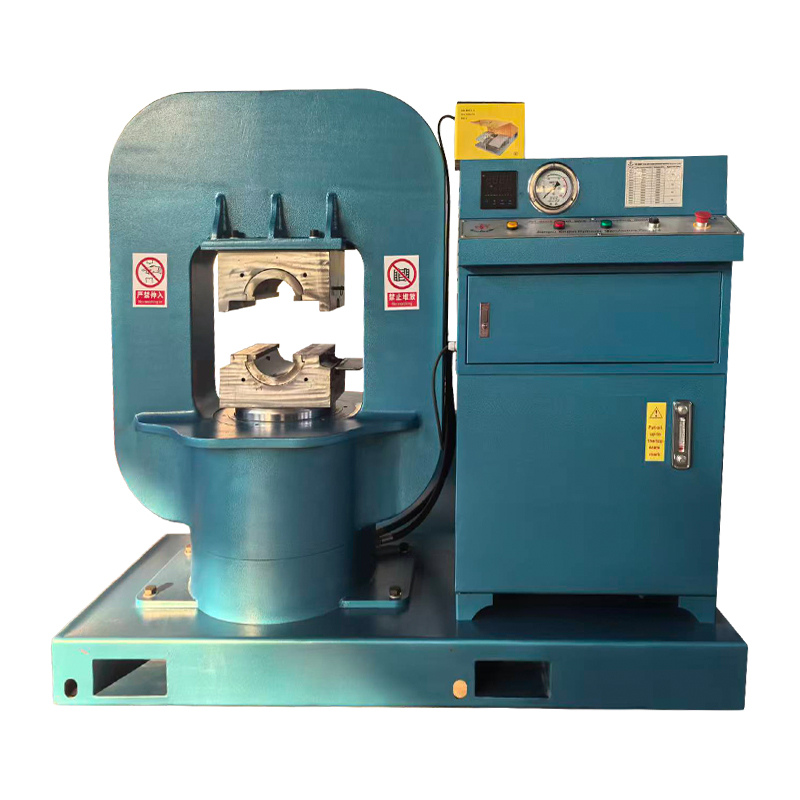

GT-800 Steel Wire Rope Sleeve Pressing Machine(Basket Frame)

1. What is the GT-800 Steel Wire Rope Sleeve Pressing Machine?

The GT-800 steel wire rope sleeve pressing machine is a high-capacity, heavy-duty hydraulic press designed specifically for the termination of large-diameter wire ropes. As a critical piece of equipment in the索具 (rigging) and lifting industries, it is used to compress metal sleeves (ferrules) onto wire ropes, creating secure, permanent loops or eyes. The "800" in its name typically denotes a substantial pressing force, often around 800 tons (approx. 8000 kN), allowing it to handle wire ropes with diameters significantly larger than standard machines.

Unlike manual swaging or smaller bench-top presses, the GT-800 is engineered for industrial applications where safety margins are non-negotiable. It utilizes a hydraulic system to apply immense, controlled pressure, forcing the sleeve material to cold-flow into the strands of the wire rope. This creates a mechanical bond that is often stronger and more reliable than traditional hand-splicing.

2. Primary Applications and Capabilities

The GT-800 is not a general-purpose tool; it is a specialized machine built for specific, high-stakes environments. Its ability to handle massive loads makes it indispensable in the following sectors:

(1) Heavy Lifting and Rigging

In shipyards and heavy construction, cranes often use wire ropes exceeding 40mm or 50mm in diameter. The GT-800 is used to press aluminum or copper sleeves onto these ropes to create master links and rigging slings. The machine ensures that the termination point can withstand the extreme tension of lifting shipping containers or steel girders.

(2) Suspension Bridges and Infrastructure

Large-scale civil engineering projects, such as suspension bridges, rely on massive wire rope cables. The GT-800 is used to terminate these cables, ensuring that the structural integrity of the bridge is maintained. The pressing process creates a smooth, compacted end that fits perfectly into bridge sockets.

(3) Mining and Marine Industries

Mining draglines and marine mooring lines require terminations that resist corrosion and fatigue. The GT-800 applies sufficient pressure to ensure the sleeve creates a watertight seal over the rope, preventing moisture ingress that could lead to internal rust.

3. Technical Performance and Specifications

The defining characteristic of the GT-800 is its ability to process "multi-segment" or "multi-pass" terminations. Because a single press cannot always deform a thick steel sleeve sufficiently, the machine is designed to perform sequential presses along the length of the sleeve.

As illustrated, while smaller machines struggle with thick cables, the GT-800 can handle diameters up to 50mm-60mm (depending on the specific configuration and whether multi-pass pressing is used). This makes it a powerhouse for heavy industry.

4. Operational Mechanism

The GT-800 operates using a sophisticated electro-hydraulic system. The process involves several key steps to ensure safety and precision.

• Mold Selection: The operator selects the appropriate die (mold) that matches the diameter of the sleeve and the wire rope. Proper alignment is critical to prevent the sleeve from slipping.
• Hydraulic Compression: The machine uses a high-pressure oil pump to drive a piston. This piston forces the dies together, compressing the sleeve. The GT-800 is capable of multi-stage pressing, where the machine compresses one section, indexes forward, and compresses the next, ensuring the entire length of the sleeve is uniformly deformed.
• Pressure Regulation: Equipped with pressure gauges and relief valves, the machine ensures that the force applied does not exceed the limits of the模具 (dies) or the rope, preventing damage to the wire strands.
