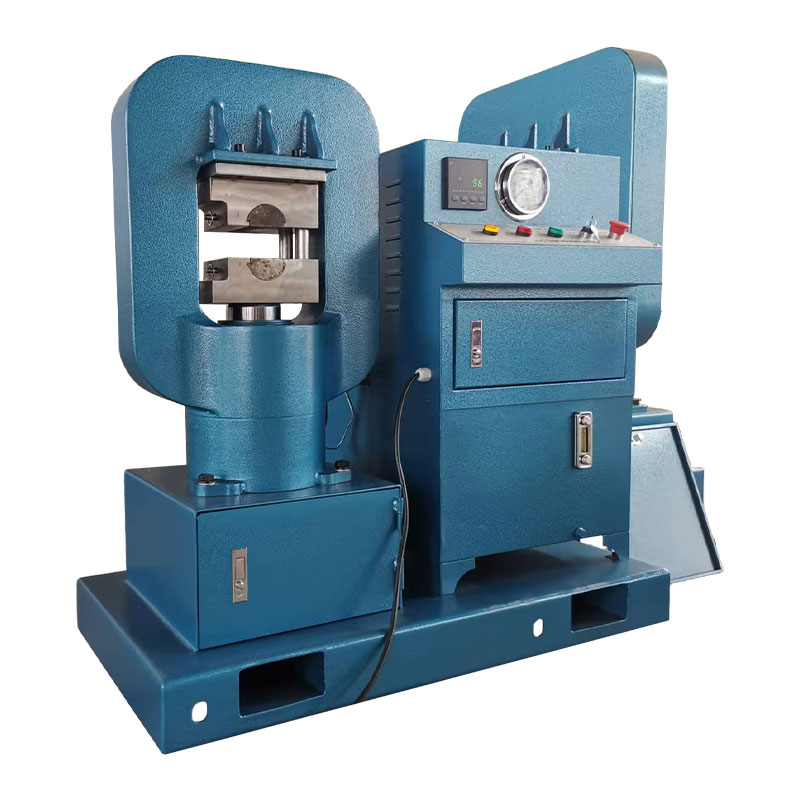

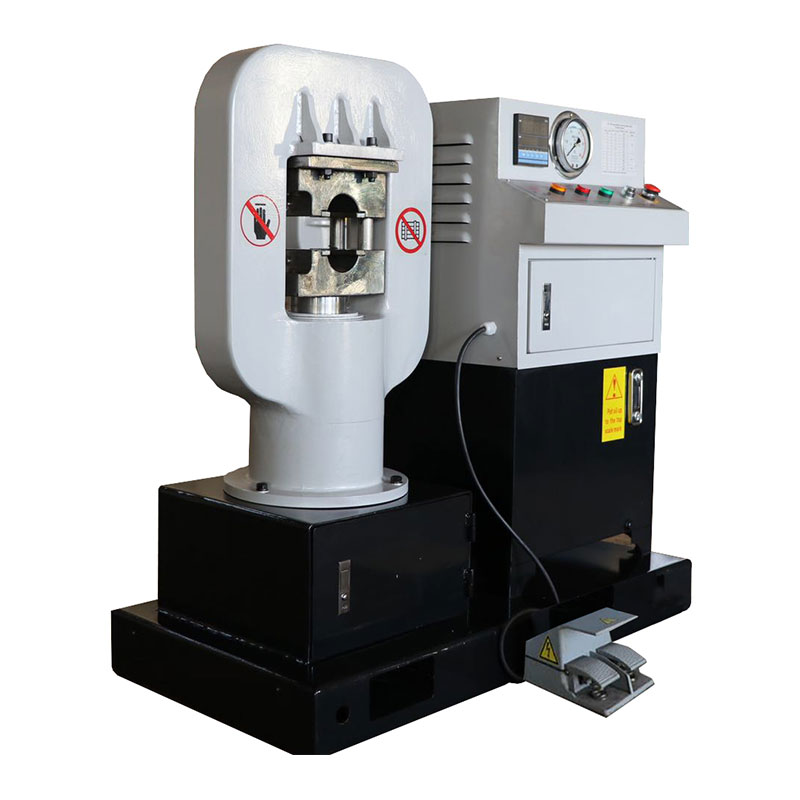

GT-100 Hydraulic Wire Rope Swaging Machine(Basket Frame)

1. How to Choose a Small Wire Rope Swaging Machine for Production?

When scaling up from manual assembly to mass production, selecting the right small wire rope swaging machine is a critical decision. "Small" in this context refers to machines designed for wire ropes typically ranging from 1mm to 12mm in diameter. These machines are compact enough to fit on a workbench but powerful enough to ensure consistent, high-strength terminations for industries like medical device manufacturing, aerospace cables, and consumer electronics.

The goal of production swaging is to replace the variability of hand tools with the precision of hydraulics or pneumatics. A well-chosen machine not only increases output speed but also ensures that every ferrule (sleeve) is compressed to the exact same diameter, guaranteeing a uniform breaking load.

2. Key Selection Criteria for Production Environments

Choosing a machine for production requires looking beyond basic specifications. You must evaluate the machine's capability to handle your specific volume and material requirements.

(1) Capacity and Tonnage

The most immediate factor is the diameter of the wire rope you intend to swage. For small production runs involving stainless steel cables (common in rigging or medical loops), you typically need a machine with a capacity of 10 to 30 tons. If you are working with softer aluminum sleeves or smaller diameters (under 4mm), a pneumatic machine might suffice. However, for steel cables up to 12mm, a hydraulic system is necessary to achieve the required cold-flow deformation.

(2) Die Compatibility and Versatility

Production lines often switch between different cable assemblies. A versatile swaging machine will feature a universal die holder or quick-change tooling. This allows operators to swap between round dies (for smooth finishes) and hexagonal dies (for higher strength) without dismantling the machine. Ensure the manufacturer provides custom die sets for the specific ferrule profiles you use.

(3) Automation and Control

For high-volume production, manual hydraulic pumps are too slow. You should look for an electro-hydraulic or pneumatic swaging machine. These machines use a foot pedal or a two-hand start button to cycle automatically. Advanced models include digital pressure gauges that lock the machine if the target pressure (e.g., 250 Bar) is not reached, preventing defective products from leaving the station.

3. Production Efficiency and Data Analysis

Investing in a small swaging machine drastically alters your production metrics. The consistency of machine swaging reduces waste and increases the tensile strength of the final assembly compared to manual methods.

As illustrated, a production-grade swaging machine can increase output by 600% or more. Furthermore, the machine ensures that the "pull-off" force of the sleeve is consistent, reducing the rejection rate during quality control.

4. Critical Applications for Small Swaging Machines

These machines are not just for heavy industry; their precision makes them vital for delicate and high-tech sectors.

(1) Medical and Dental Devices

Small swaging machines are used to attach stainless steel ferrules to dental flossers, orthodontic wires, and surgical cable systems. In these applications, the machine must provide a clean, burr-free finish to prevent injury or contamination.

(2) Consumer Electronics and Appliances

From refrigerator door cables to bicycle brake lines, small machines are used to terminate flexible cables. The ability to swage aluminum sleeves without cracking the surface is crucial for aesthetic consumer products.

(3) Jewelry and Craft Manufacturing

For wire rope jewelry, the swaging machine allows for the mass production of secure loops and clasps. The machine's precision ensures that the crimp is tight enough to hold but does not crush the delicate wire strands.
