As GT-1000 Hydraulic Wire Rope Sleeve Pressing Machine(Basket Frame) Manufacturers and GT-1000 Hydraulic Wire Rope Sleeve Pressing Machine(Basket Frame) Company, Jiangsu Xingtai Hydraulic Manufacturing Co., Ltd. was founded in 1992 and is located in Taizhou City, Jiangsu Province, China. The company specializes in manufacturing hydraulic wire rope pressing machines, wire rope annealing and tapering machines, aluminum sleeves, and lifting clamps. Xingtai Hydraulic is equipped with advanced production facilities, strong technical capabilities, authoritative testing equipment, and a comprehensive quality management system.
The swaging components of Xingtai Hydraulic machines are forged from high-strength alloy steel. The machine body is manufactured from a single block of material, ensuring structural integrity and long service life. Our hydraulic systems utilize a dual-pressure pump oil supply system, which enables fast upward and downward movement while ensuring a smooth pressing process. This design significantly improves pressing quality and production efficiency.
Xingtai Hydraulic machines have been exported to numerous countries, including the UK, Australia, the Netherlands, Latvia, Malaysia, Thailand, India, Russia, Botswana, Poland, and others.
Guided by the philosophy of "high quality, competitive price, and lasting commitment," we strive to meet our customers' needs and provide them with the best service. We remain dedicated to serving both existing and new clients with the same level of excellence as we work together to build a successful future.
Technical Data
| Mode No. | GT-1000 |
| Max wire rope diameter in multi-pressing (mm) | Φ56 |
| Power (KW) | 11 |
| Max working pressure (MPa) | 56Mpa |
| Max piston movement (mm) | 200 |
| The up speed of the piston (mm/sec) | 4.8 |
| The down speed of the piston (mm/sec) | 10 |
| Total length (mm) | 2100 |
| Total width (mm) | 1100 |
| Total height (mm) | 2000 |
Product Features

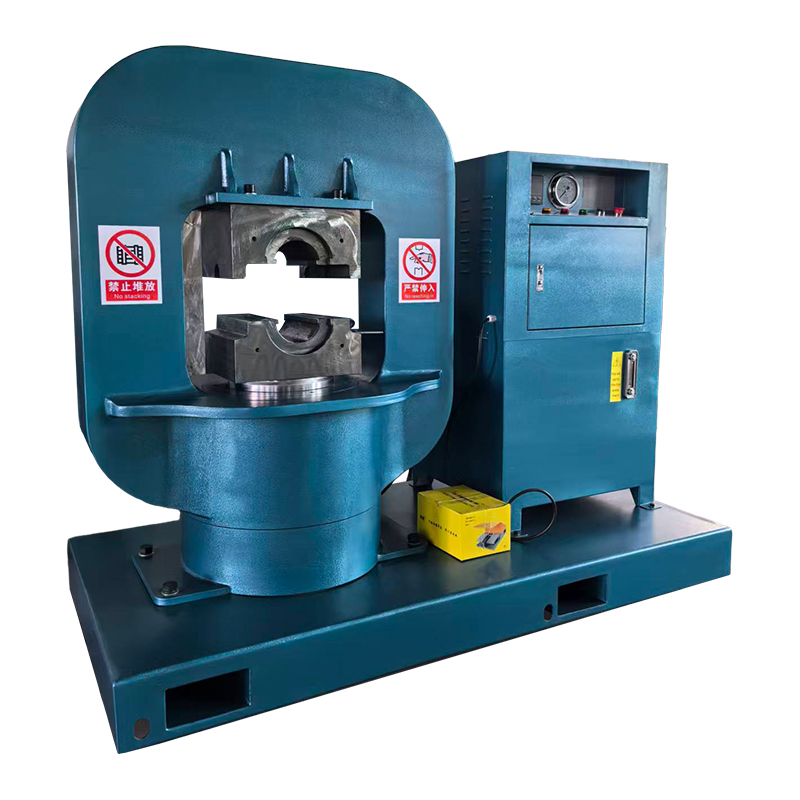

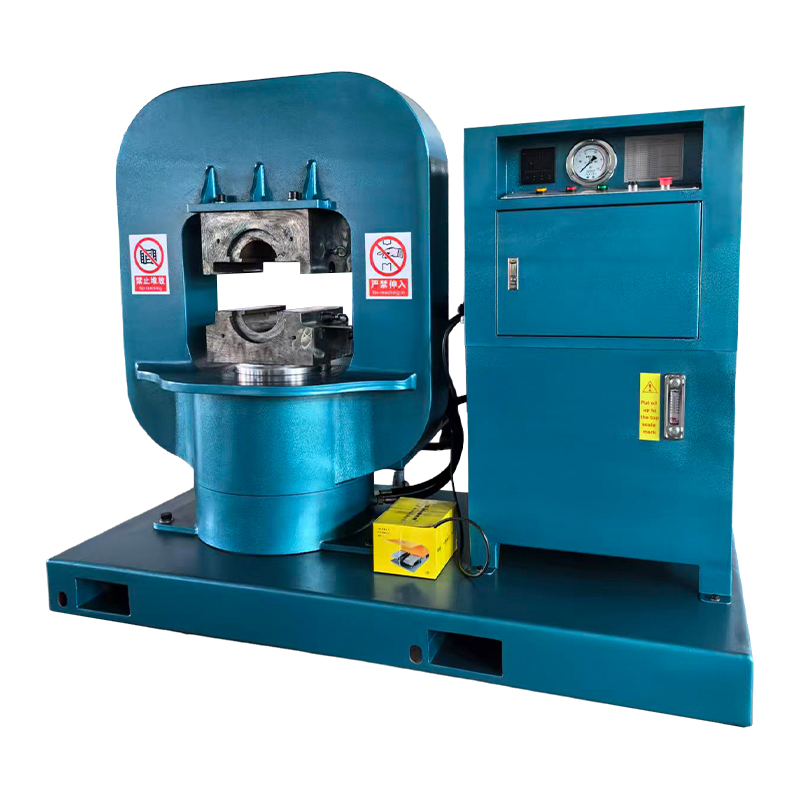

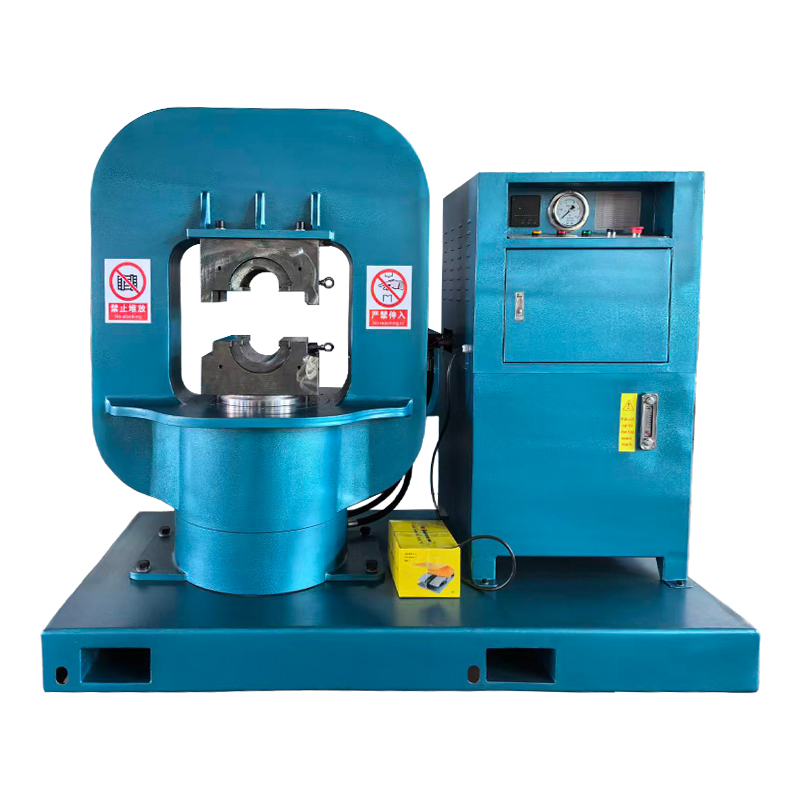

The GT-1000 Hydraulic Wire Rope Sleeve Pressing Machine (Basket Frame) stands out as a high-performance solution for wire rope sleeve pressing tasks, integrating robust construction and advanced functionality. Equipped with a powerful two-stage hydraulic unit, it delivers exceptional pressing force up to 1000T, ensuring precise and efficient shaping of wire rope sleeves even for heavy-duty applications. Adhering to proven safety standards, the machine features a reliable safety design, minimizing operational risks and safeguarding operators.
Crafted with a one-piece block construction, this press machine boasts superior structural strength, enabling it to withstand rigorous industrial use while maintaining long service life and reducing maintenance needs significantly. Its versatility shines across multiple sectors, including the wire rope industry, mining, metallurgy, wharves, railways, and electrical engineering, adapting seamlessly to diverse operational scenarios.
Key characteristics set it apart: Its high-strength build ensures stable performance, paired with user-friendly operation that yields slings with smooth surfaces, enhancing product quality. The machine offers excellent sealing performance, guaranteeing safety, reliability, and durability in harsh working environments. The round mold design with automatic positioning allows for quick and easy mold changes, improving work efficiency. Notably, the piston can be halted at any position, enabling precise adjustment of wire rope eye/loop sizes to meet custom requirements. It is also compatible with small-size dies from the GT-500T wire rope press machine, expanding its application scope. Certified with CE, this machine meets international quality and safety benchmarks, making it a trustworthy choice for industrial professionals seeking high-performance wire rope sleeve pressing equipment.
