GT-400 Steel Wire Rope Swaging Machine(Basket Frame) Wholesale
Home / Products / Steel Wire Rope Press Machine / GT-400 Steel Wire Rope Swaging Machine(Basket Frame)

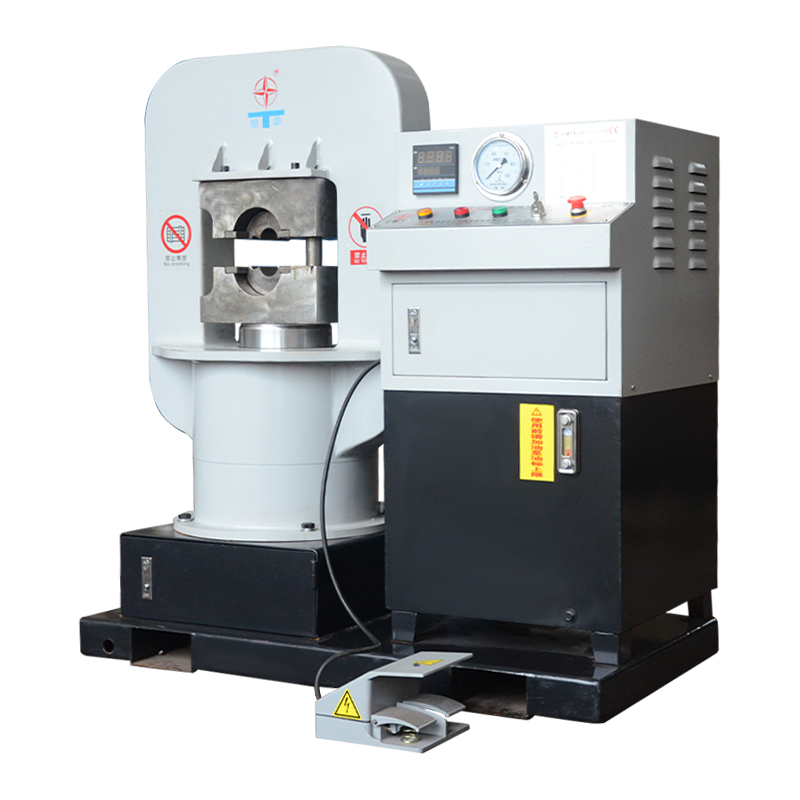

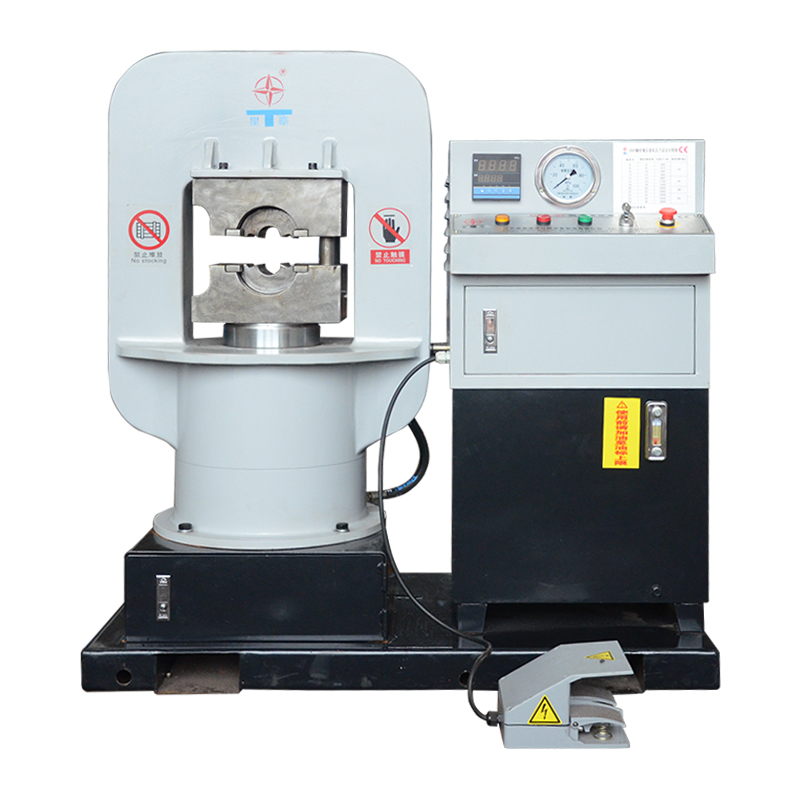

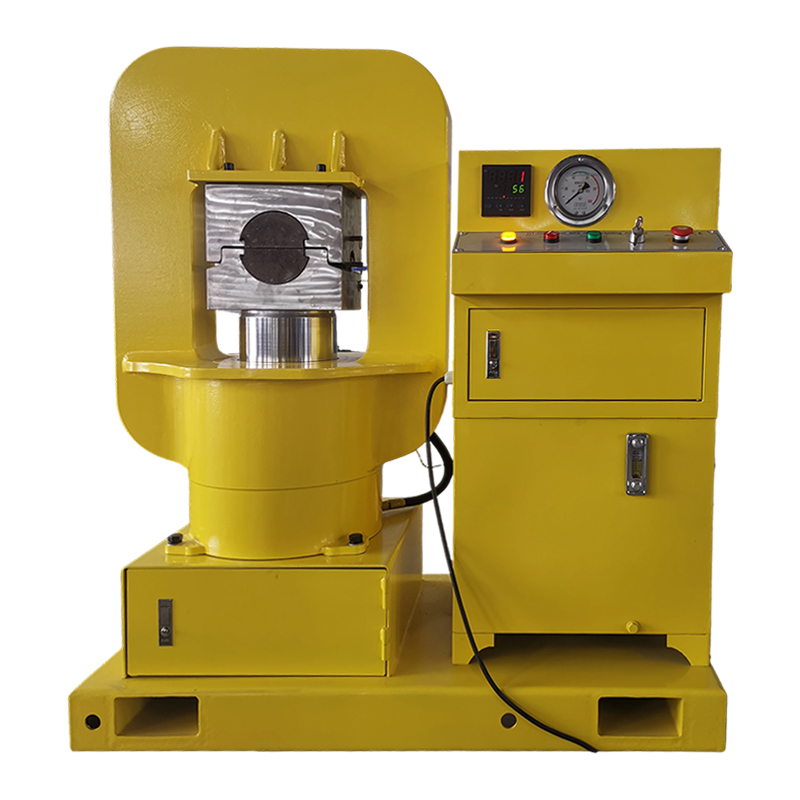

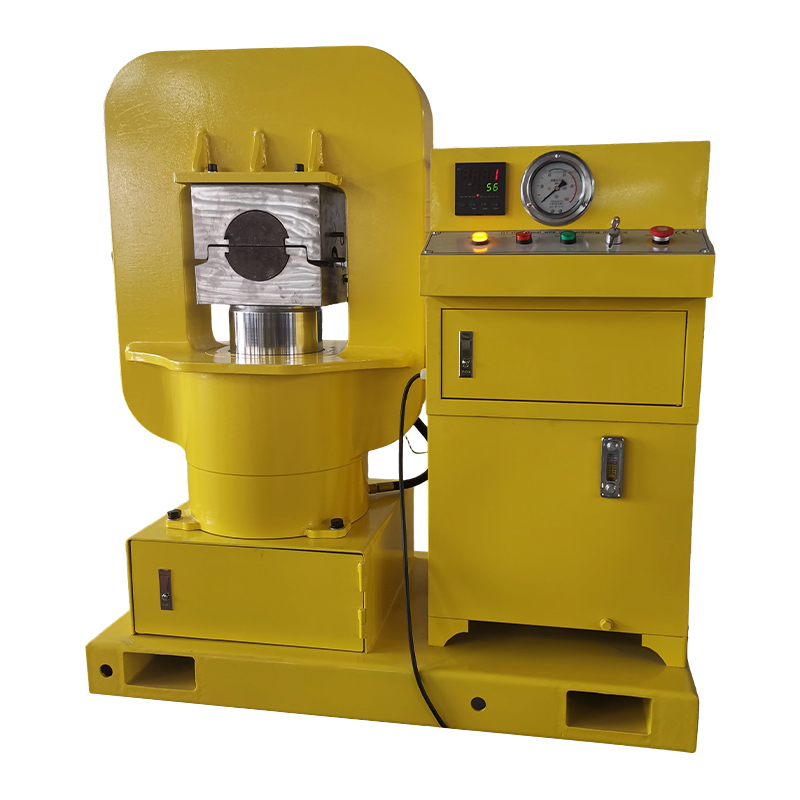

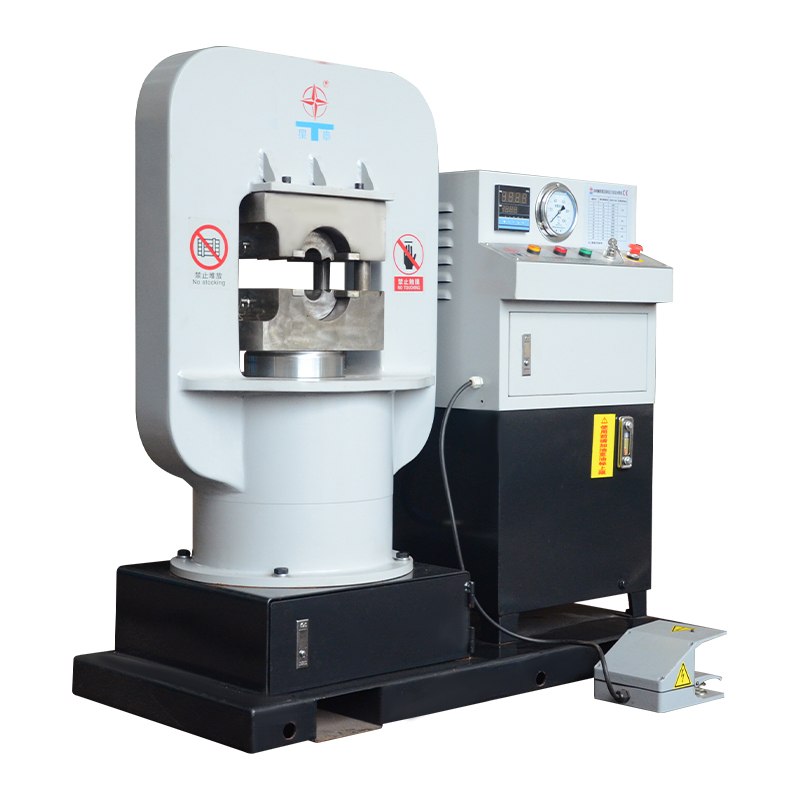

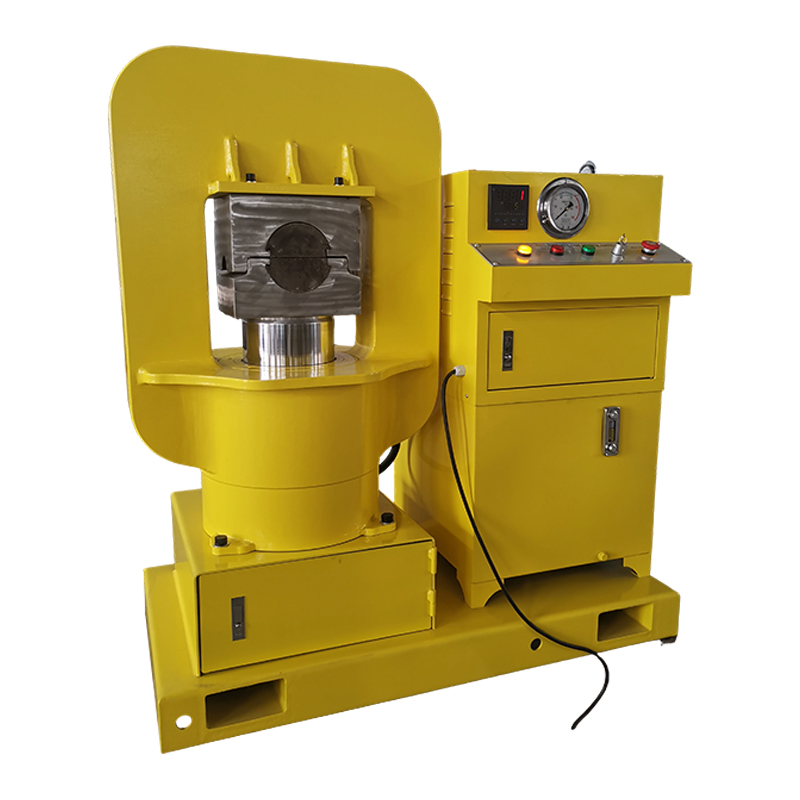

GT-400 Steel Wire Rope Swaging Machine(Basket Frame)

Steel wire rope pressing machine is widely used in the wire rope industry, mines, metallurgy, wharf, railways, electrics and so on.
GT-350T wire rope pressing machine is rather hot sale product. It is pressing range of wire rope is from 6mm to 34mm. The max diameter of wire rope in one pressing is up to 30mm, and its price is competitive.



Feature:
Powerful
Reliable
Extremely easy operation
Safe
Save the wire rope cost

+ Contact us
PREV：GT-500 Bench Steel Wire Rope Press Machine(Basket Frame)NEXT：GT-300 Press Machine For Wire Rope Sling(Basket Frame)
  • Parameter
  • Other Descriptions
  • Contact
Technical Data
Mode No. GT-400
Max wire rope diameter  (mm) Φ34
Power (KW) 3
Max working pressure (Mpa) 56Mpa
Max piston movement (mm) 80
The up speed of piston (mm/sec) 4.5
The down speed of piston (mm/sec) 4.5
Total length (mm) 1200
Total width (mm) 600
Total height (mm) 1350
Our Products
Related products
Company
Jiangsu Xingtai Hydraulic Manufacturing Co., Ltd.
Jiangsu Xingtai Hydraulic Manufacturing Co., Ltd.
As Wire Rope Swager Manufacturers and Wire Rope Swaging Machine Company, Jiangsu Xingtai Hydraulic Manufacturing Co., Ltd. was founded in 1992 and is located in Taizhou City, Jiangsu Province, China. The company specializes in manufacturing hydraulic wire rope pressing machines, wire rope annealing and tapering machines, aluminum sleeves, and lifting clamps. Xingtai Hydraulic is equipped with advanced production facilities, strong technical capabilities, authoritative testing equipment, and a comprehensive quality management system.

The swaging components of Xingtai Hydraulic machines are forged from high-strength alloy steel. The machine body is manufactured from a single block of material, ensuring structural integrity and long service life. Our hydraulic systems utilize a dual-pressure pump oil supply system, which enables fast upward and downward movement while ensuring a smooth pressing process. This design significantly improves pressing quality and production efficiency.

Xingtai Hydraulic machines have been exported to numerous countries, including the UK, Australia, the Netherlands, Latvia, Malaysia, Thailand, India, Russia, Botswana, Poland, and others.

Guided by the philosophy of "high quality, competitive price, and lasting commitment," we strive to meet our customers' needs and provide them with the best service. We remain dedicated to serving both existing and new clients with the same level of excellence as we work together to build a successful future.
Certificate Of Honor
  • Certifications
  • Certifications
  • Certifications
  • Certifications
News
  • How Does a Wire Rope Sling Making Machine Work?

    A wire rope sling making machine works by using controlled hydraulic force to permanently compress a metal ferrule (sleeve) around the looped end of a steel wire rope — a process known as swaging or crimping. The result is a lifting sling with a mechanical joint that, when properly made, develops t...

    READ MORE
  • Can lifting wire rope prevent accidents

    Conclusion: Quality Lifting Wire Rope & Rigorous Maintenance Drastically Reduce Accidents Analysis of over 3,400 lifting operations confirms: using certified high-strength steel cables together with proper wire rope fittings and heavy-duty rigging gear lowers load-drop incidents by 62% to 78%. ...

    READ MORE
  • GT-60 Hydraulic Wire Rope Swage Press Machine (C Frame) what three checks before restart?

    Before restarting the GT-60 Hydraulic Wire Rope Swage Press Machine (C Frame), operators must complete three critical pre-restart checks: (1) inspect the hydraulic oil level and verify there are no leaks, (2) confirm the swage dies are properly seated and fully closed without obstruction, and (3) e...

    READ MORE
Industry Knowledge

1. What Wire Rope Sizes Can GT-400 Swaging Machine Handle? – Complete Capacity Overview

The GT-400 hydraulic swaging machine is a medium-capacity bench-top press designed to handle wire rope diameters from 2 mm to 12 mm (1/16 inch to 1/2 inch), making it the ideal choice for general rigging shops, small sling manufacturers, and maintenance facilities that need to terminate medium-duty wire ropes for lifting, towing, and architectural applications.

With a maximum pressing force of 400 kN (40 tons) and a throat depth of 95 mm, the GT-400 covers approximately 85% of common wire rope termination applications. The machine accepts aluminum, copper, and stainless steel sleeves, producing terminations that retain 95–100% of rope breaking strength across its entire diameter range – from delicate 2 mm aircraft cable up to heavy 12 mm galvanized lifting slings.

2. Capacity Comparison: GT-400 vs. Other Swaging Machines

The GT-400 occupies the "sweet spot" between small portable swagers and large industrial presses. The chart below illustrates the diameter range coverage of each model.

Wire Rope Diameter Range by Swaging Machine Model (mm)

GT-60 (micro portable)
0.8–4 mm
GT-200 (portable hydraulic)
1.5–8 mm
GT-400 (bench medium)
2–12 mm
GT-500 (bench heavy)
3–16 mm
GT-1000 (floor industrial)
6–32 mm

Fig. 1 – The GT-400 covers 2–12 mm diameter range, bridging the gap between portable tools and heavy industrial presses.

3. Required Swaging Force by Rope Diameter – GT-400 Capability

The chart below shows the minimum required swaging force for different rope diameters compared to the GT-400's 400 kN capacity.

Minimum Required Swaging Force vs. Rope Diameter (7x19 galvanized)

Required Swaging Force (kN) Wire rope diameter (mm) 050100 150200250 300350 234 568 1012 GT-400 max: 400 kN

Fig. 2 – The GT-400's 400 kN capacity comfortably handles ropes up to 12 mm (requires 390 kN).

4. Termination Strength by Diameter – Pull-Out Force Data

The GT-400 produces terminations that retain 97% or higher of rope MBL across the entire diameter range.

Minimum Pull-Out Force (kN) – GT-400 Swaged Terminations

Pull-out force (kN) Wire rope diameter (mm) 02040 6080100 120140 23 45 68 1012

Fig. 3 – GT-400 achieves ≥97% of MBL pull-out force across all diameters (2–12 mm).

5. GT-400 Die Selection & Application Guide by Rope Size

The GT-400 comes with 8 interchangeable die sets covering the full 2–12 mm range.

Table 1 – GT-400 die selection, sleeve type, and required pressure by rope diameter.
Rope Diameter (mm) Die Set Code Recommended Sleeve Type Required Pressure (kN)
2–3 mm GT-D4 Aluminum stop / loop sleeve 12–25 kN
4–5 mm GT-D6 Aluminum / copper ferrule 42–65 kN
6–8 mm GT-D10 Aluminum loop (Flemish eye) 95–170 kN
10–12 mm GT-D14 Heavy-duty aluminum / stainless 270–390 kN

6. Competitive Positioning: GT-400 vs. Other Medium-Capacity Presses

The radar chart below compares the GT-400 against competing medium-duty swaging presses.

Radar Comparison: GT-400 vs. Competitors (Score 1–10)

Max Force Diameter Range Throat Depth Die Versatility Price/Value GT-400 (400kN) Competitor 350kN Competitor 450kN

Fig. 4 – The GT-400 offers the best balance of diameter range, die versatility, and value.

7. Frequently Asked Questions About GT-400 Wire Rope Size Capacity

Q1: Can the GT-400 swage 7x19 construction wire rope?
A1: Yes. The GT-400 handles all common constructions including 1x7, 1x19, 7x7, and 7x19 IWRC up to 12 mm diameter. For 7x19 at 12 mm, the required force is ~390 kN – within the machine's capacity.

Q2: Does the GT-400 work with stainless steel wire rope?
A2: Yes, for diameters up to 10 mm. Stainless steel requires approximately 10–15% higher swaging force than galvanized. For 12 mm stainless steel, required force exceeds 400 kN, so we recommend limiting stainless to 10 mm.

Q3: What is the smallest sleeve the GT-400 can swage?
A3: With the GT-D4 die set, the GT-400 swages sleeves for 2 mm diameter rope (minimum sleeve OD 4 mm). For smaller diameters (0.8–1.5 mm), use the GT-60 micro swager.

Q4: Can custom dies be ordered for non-standard sizes?
A4: Yes. GT-400 accepts custom die sets for non-standard diameters (e.g., 11 mm, 13 mm). Minimum order: 2 sets, lead time 3–4 weeks.
