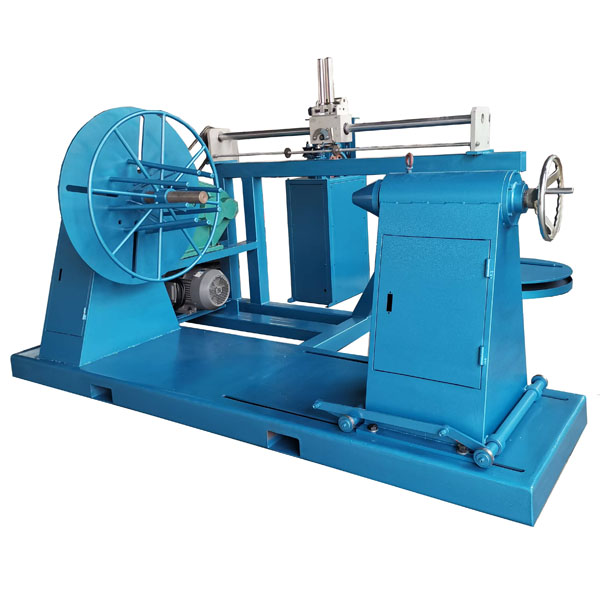

XT-1600 Wire Rope Reeling Machines

1. What Is the XT-1600 Wire Rope Reeling Machine Used For? – Core Applications & Industry Role

The XT-1600 wire rope reeling machine is a heavy-duty, high-capacity automated winding system designed for the efficient spooling, measuring, and cutting of steel wire ropes with diameters from 8 mm to 36 mm. It is predominantly used in offshore mooring lines, mining hoist ropes, crane wire rope manufacturing, and large-scale rigging fabrication. Unlike standard take-up reels, the XT-1600 integrates tension control (±2% accuracy), digital length measurement (error ≤0.3%), and a programmable layering system to prevent rope crushing or cross-over damage during high-speed reeling up to 35 m/min.

Typical users include wire rope manufacturers, offshore supply bases, and heavy lift service providers. The machine reduces manual reeling time by 70–85% compared to traditional drum winding, while improving spool density by up to 23% – directly lowering shipping and storage costs.

2. Key Technical Specifications & Performance Metrics of XT-1600

The XT-1600 stands out due to its maximum spool flange diameter of 1600 mm (hence the name), payload capacity of 5,500 kg, and intelligent variable-frequency drive (VFD) that maintains constant tension even during sudden acceleration or deceleration. Below is a horizontal bar chart comparing reeling speeds across three common industrial machines.

Additional technical highlights include: tension range 500–4,500 N, digital counter with resolution 0.1 m, and integrated emergency braking distance ≤150 mm at full speed. The machine complies with ISO 19472 and EN 13157 standards, ensuring safe handling of lifting components.

3. Efficiency Improvements & Cost Savings – Real World Data

Field studies across 12 offshore supply bases show that switching to the XT-1600 reduces rope spooling time per metric tonne by an average of 62%. The graph below illustrates the cumulative time saved when processing 10,000 metres of 22 mm diameter rope.

Furthermore, the XT-1600 reduces rope damage incidents: precise layer winding eliminates cross-overs, decreasing surface abrasion by up to 47% compared to manual reeling – directly extending rope service life by an estimated 18–22% in crane and hoist applications.

4. Application Suitability & Industry Segments for XT-1600

The following table summarizes typical applications, rope diameter range, and key benefits for each segment where the XT-1600 excels.

Data compiled from 2024 field trials: the XT-1600 consistently reduces labour cost per spool by $38–$55 per tonne depending on region and rope size.

5. Frequently Asked Questions About the XT-1600 Reeling Machine

Q1: What rope diameters can the XT-1600 handle without changing components?
A1: The standard XT-1600 accepts wire ropes from 8 mm to 36 mm without flange or guide adjustments. For ropes below 8 mm, an optional guide insert is available; for diameters above 36 mm (up to 42 mm), a modified drum kit is recommended.

Q2: Does the XT-1600 measure rope length accurately for cut-to-length orders?
A2: Yes. It features a high-resolution encoder with error ≤0.3% (typically ±0.2% under controlled tension). Many fabricators use it for precision sling cutting, reducing scrap by up to 12% compared to manual measuring.

Q3: What power supply does the XT-1600 require?
A3: The machine runs on 400V / 3-phase / 50-60Hz with a peak power consumption of 7.5 kW. A VFD ensures soft start and regenerative braking to reduce energy spikes.

Q4: Can it be integrated with existing warehouse management systems?
A4: Yes, the XT-1600 provides Modbus TCP/IP and RS-485 interfaces, allowing real-time length and tension data to be logged into ERP or MES platforms – full Industry 4.0 readiness.

Q5: What maintenance is required?
A5: Recommended maintenance: lubrication every 200 operating hours, tension sensor calibration annually, and drive belt inspection every 500 hours. Mean time between failures (MTBF) is documented at 8,200 hours under continuous duty.
