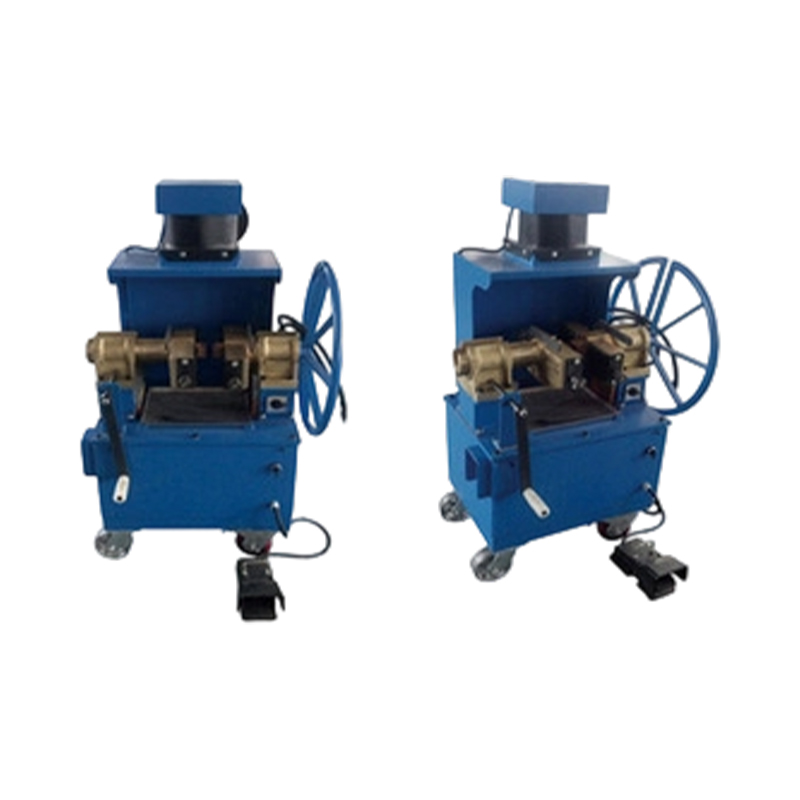

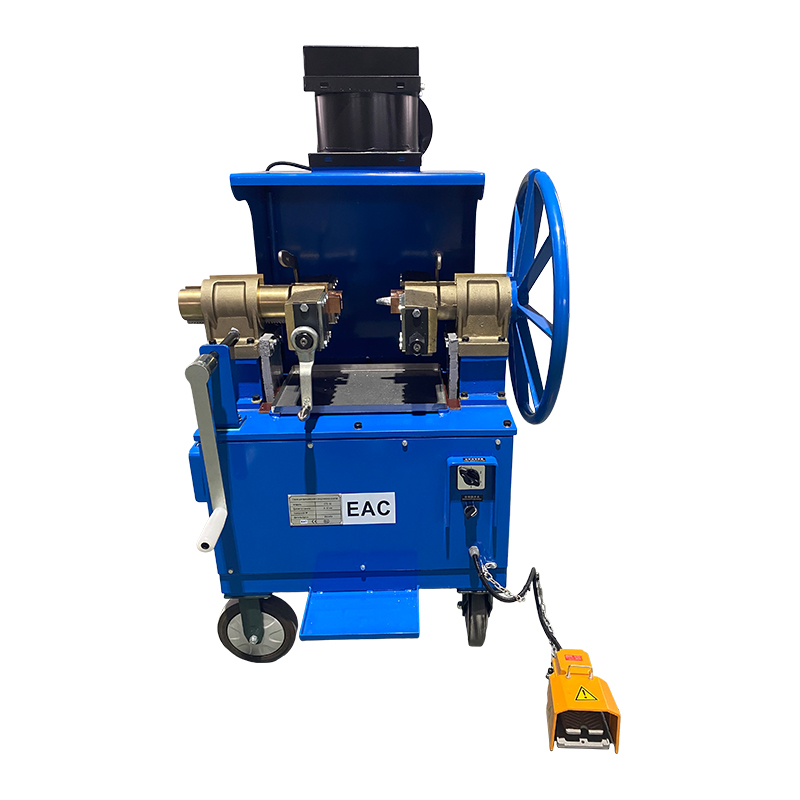

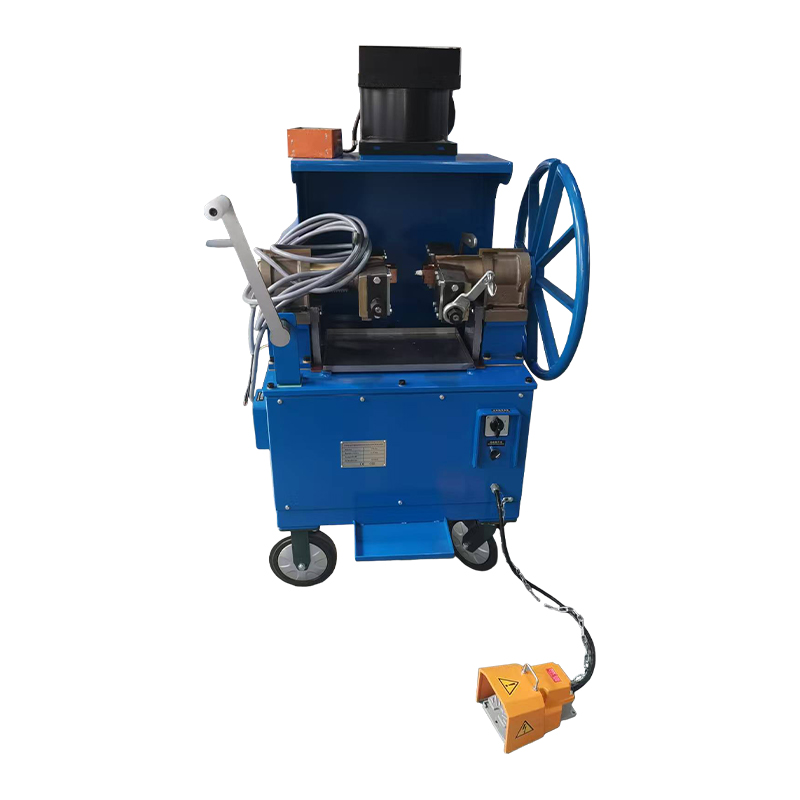

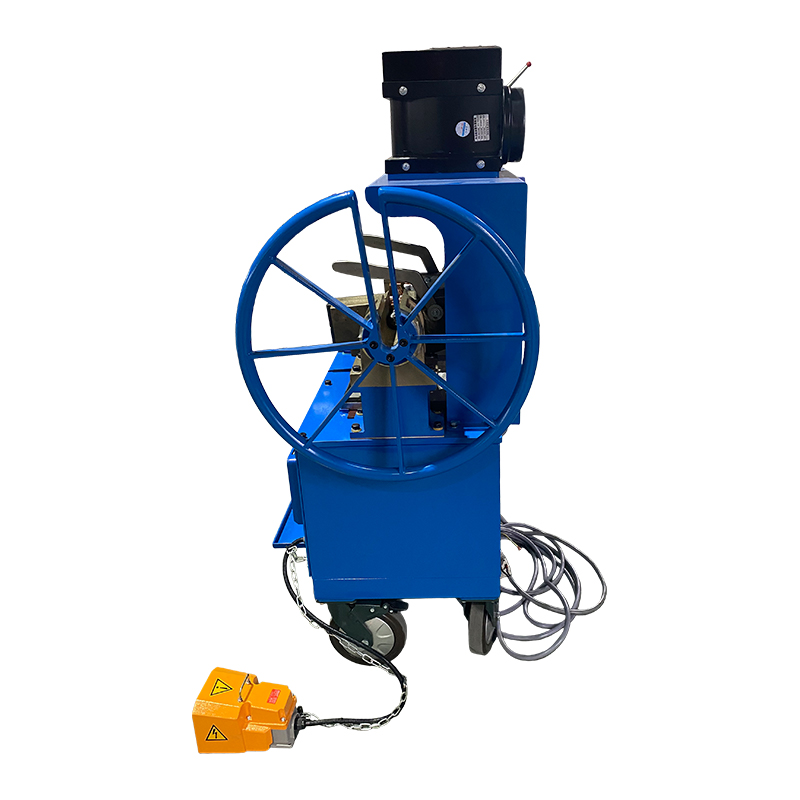

RDQ-1011 Wire Rope Annealing and Tapering Machine

1. What is a Wire Rope Annealing and Tapering Machine?

A wire rope annealing and tapering machine is a specialized industrial apparatus designed to prepare the ends of steel wire ropes for secure termination. Unlike standard cutting tools, this machine utilizes high-current electrical resistance heating to perform two critical functions: softening the metal structure (annealing) and forming a precise conical shape (tapering). This process is indispensable for creating "potted" or socketed ends used in high-stakes applications such as elevator suspension systems, suspension bridges, and heavy-lift cranes.

By transforming the rigid, springy nature of cold-drawn steel into a malleable state, the machine ensures that the wire strands can be compacted into a solid, seamless cone. This allows the rope to be anchored into a socket with resin or zinc, distributing tensile loads evenly across the entire cross-section of the cable.

2. The Dual-Stage Thermal Process

The operation of this machine is a sophisticated interplay of thermal dynamics and mechanical force. It addresses the inherent hardness of steel wire ropes, which can make termination difficult and prone to failure if not managed correctly.

(1) Electrical Annealing (Softening)

The first stage involves passing a controlled electrical current through the rope. This resistance heating raises the temperature of the steel to a specific "plastic state"—typically between 600°C and 900°C, depending on the alloy. This heat treatment relieves the internal stresses caused by the cold-drawing manufacturing process. The result is a section of rope that is ductile and compliant, eliminating the "spring-back" effect that often causes wires to splay open during manual assembly.

(2) Tapering and Forming

Once the metal is softened, the machine engages its mechanical forming sequence. A stretching cylinder applies tension while a rotary motor spins the rope. This combined action draws the individual wires together, compressing them into a smooth, tapered geometry. This "fuse" creates a solid metal plug that fits perfectly into standard tapered sockets, ensuring a mechanical lock that prevents slippage under load.

3. Operational Efficiency and Data Analysis

Adopting automated annealing and tapering technology significantly outperforms traditional manual methods like zinc pouring or mechanical swaging. The precision of the machine reduces the "Heat Affected Zone" (HAZ), ensuring that the tensile strength of the rope above the termination point remains uncompromised.

The data illustrates that automated machines can process rope ends up to 10 times faster than manual methods. Furthermore, the consistency of the taper angle ensures a higher quality fit within the socket, reducing the rejection rate in quality control inspections.

4. Critical Applications in Infrastructure

The versatility of the annealing and tapering process makes it suitable for a wide range of heavy-duty industries.

• Elevator Systems: For high-rise elevators, the rope must be anchored into the car frame. The annealed taper allows the wires to flow into the socket, creating a termination that is often stronger than the rope itself.
• Suspension Bridges: Main cables and suspender ropes require precise termination points. The machine ensures that the conical ends are uniform, which is critical for the structural balance of the bridge.
• Architectural Nets: In modern architecture, stainless steel ropes are used for facades and safety nets. The fusing process creates a clean, aesthetic finish that is free of sharp, protruding wires.
